CUMMINS 18 CYLS
TURBO
NATGAS ENGINE |
|
 |
|
|
2,000 KW
[2MW]

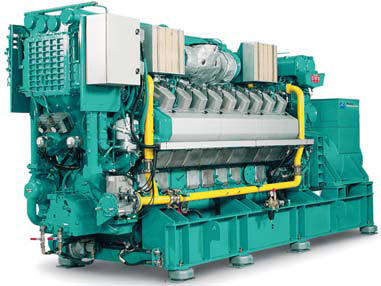

This Cummins Power Generation gas generator
set is a fully integrated power generation
system utilizing state of the art
technology that results in optimum
performance and efficient use of fuel for
continuous duty, CHP and low BTU applications.
NATGAS GENERATION |
|
4 cycle, V-block, turbocharged low temperature
aftercooled, 100L |
|
SPECIAL PRICES &
OPTIONS |
|
LEAD TIME FOR
DELIVERY 6-12 WEEKS AFTER PAYMENT |
|
|
|
PLANTA
NAT-GAS:
Doosan D125L Engine
PTDN-150 125KW-156KVA|
135 KWA PRIME RATING |
DESDE
$29,995.00 | U.S.
| TAX, DUTY, FREIGHT AND RIGGING NOT INCLUDED.
TRANSFORMERS, INSTALLATION AND BANK FEE NOT QUOTED.
EMAIL |
|
|
125 kw, 156 kva, 120/208/480 vac, 3PH, 0.8PF, 60hz, 1,800
RPM, STAND BY RATED, Natural Gas generator sets,
model PTDN-150 -157 |
Equipped with following
features |
|
|
PLANTA
NAT-GAS:
Doosan D140L Engine
PTDN-180 140KW-175KVA
| 156 KWA PRIME
RATING |
DESDE
$34,995.00 | U.S.
| TAX, DUTY, FREIGHT AND RIGGING NOT INCLUDED.
TRANSFORMERS, INSTALLATION AND BANK FEE NOT QUOTED.
EMAIL |
|
|
140 kw, 175
kva, 120/208/480 vac, 3PH,
0.8PF, 60hz, 1,800 RPM,
PRIME Power Rated, Natural Gas generator sets, model
PTDN-180
-175 |
Equipped with following
features |
|
|
PLANTA
NAT-GAS:
Doosan D250L Engine
PTDN-250 250KW-290KVA
| 276 KWA PRIME
RATING |
DESDE
$55,995.00 | U.S.
| TAX, DUTY, FREIGHT AND RIGGING NOT INCLUDED.
TRANSFORMERS, INSTALLATION AND BANK FEE NOT QUOTED.
EMAIL |
|
|
|
250
kw, 290 kva, 208/480
vac, 3PH, 0.8PF, 60hz, 1,800
RPM, PRIME Power Rated, Natural Gas generator sets,
model PTDN-250 -195 |
|
Equipped with following
features |
|
|
NAT-GAS
ENGINEERING PROJECT COST
$1,500.00 |
E-MAIL |
NON
REFUNDABLE |
|
|

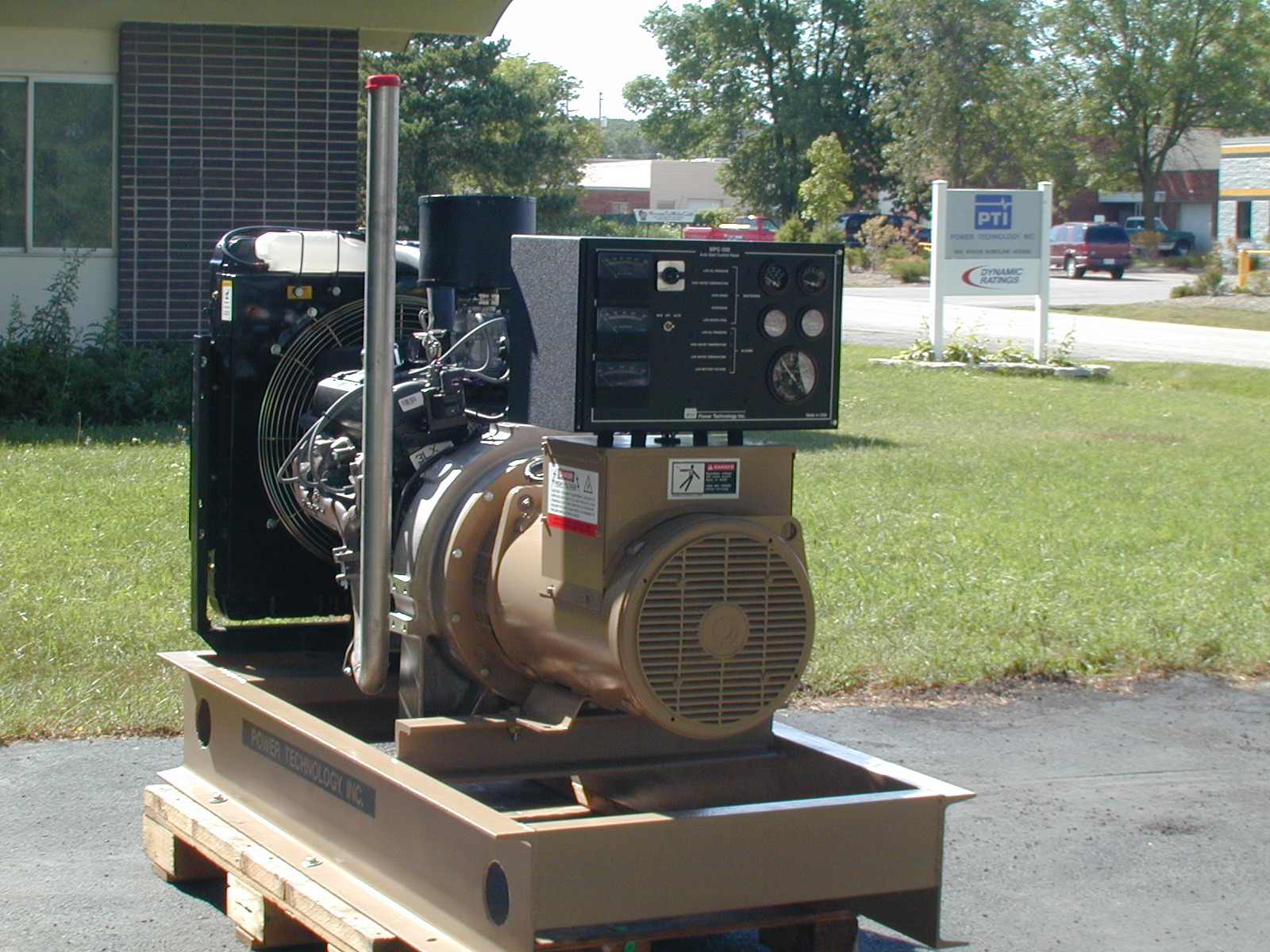

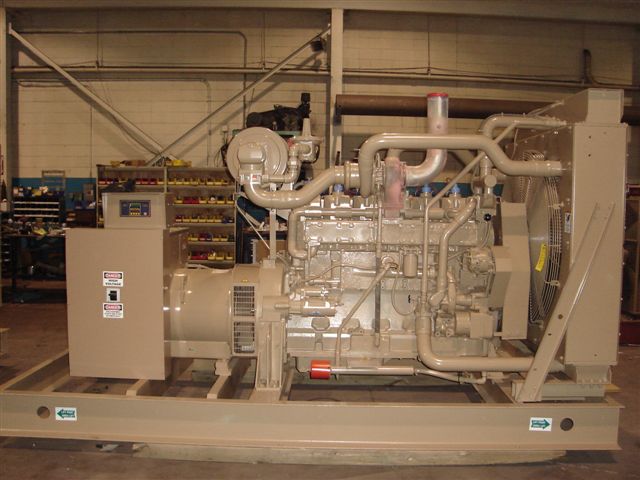

ALL 125-250KW
NATGAS GENSETS ARE MADE IN USA. WE SHIP FROM MIAMI &
FORT LAUDERDALE, FLORIDA. |
-
§
Doosan D081L Engine,with 24vdc
starter motor; battery charging alternator; Dry type
air cleaner; Electronic Governor
-
§
Brushless alternator, UCI274Ewith PMG
Excitation and MX341 Regulator.
-
§
Radiator, Unit Mounted with guards.
-
§
Heavy duty Steel Base with lifting
provisions.
-
§
Unit Mounted control panel, NEMA-1,
with Parallel and auto snchronizing controls for
parallel operation with each other + Paralleling
CT/s + 600 Amp Motor Operated breaker.
-
§
Natural Gas Carburetor with secondary
regulator; 24vdc shutdown valve.
-
(Adequate volume of gas @ 10-20
inches water column pressure must be available.)
-
§
Flex Fuel Line connector
-
§
Battery with rack and cables.
-
§
Battery Charger, 24vdc, 10 Amp.,
Mounted on the unit and wired
-
§
Industrial grade silencer.
-
§
Flexible exhaust connector.
-
§
Oil Drain Extension.
-
§
Initial fill of oil and coolant.
-
§
One set of O&M Manuals
-
§
Standard Factory Testing at 1.0PF
|
-
Price quoted is your net cost, ex
factory. IT DOES NOT include shipping
charges, unloading at site; installation; Field
Testing and other onsite services.
-
Delivery: About 90 days.
-
Dimensions: 143”L x 60”Wx90”H; 8000
LBS. (Approx.)
-
Terms: 75%
deposit with the order and balance prior to shipment.
|
|
